Fire Fighting Pipes
SPRINKLER PIPES
|
Production Range
|
21.3 mm – 219.1 mm
|
|
Wall Thickness
|
0.60 mm – 8.00 mm
|
|
Length
|
Standard 6.00 meters (4.00 – 12.00 meter lengths available).
|
|
Surface Conditions
|
Hot dip galvanized (EN 10240)
|
|
Black, grey or red water based primer painted
|
|
|
Protective oiled
|
|
Pipe Ends
|
Square cut
|
|
Bevelled Ended
|
|
|
Threaded
|
|
|
Threaded and Coupled
|
|
|
Grooved
|
|
Applications
|

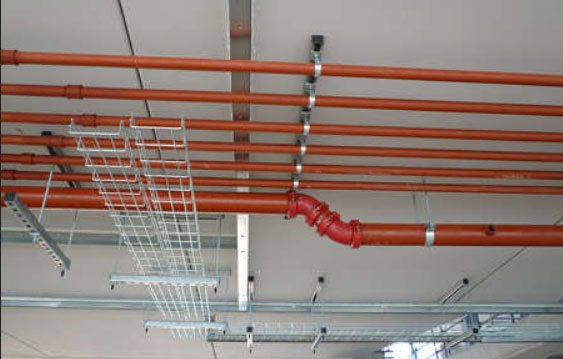

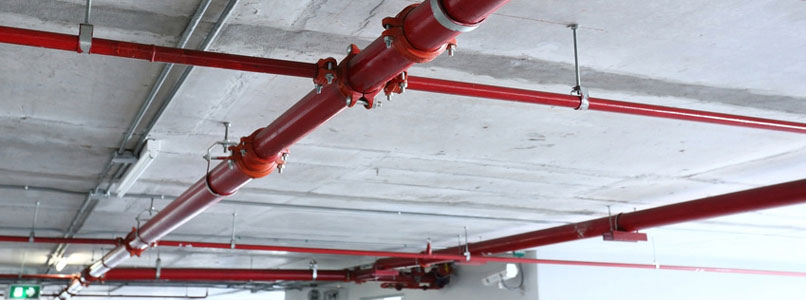

Sprinkler systems, fire protection
|
|
Production Standards
|
EN 10255
|
|
EN 10217-1
|
|
|
ISO 65
|
|
|
ASTM A 53
|
|
|
ASTM A 795
|

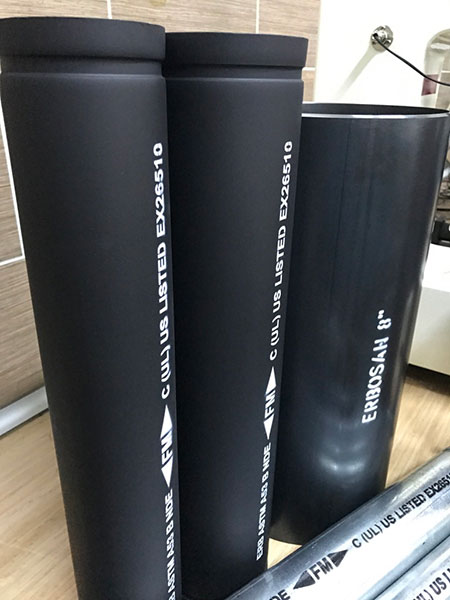

– Products are die stamped or stencil marked according to pipe manufacturing standards.
– All pipes undergo Non-Destructive testing
– CE Marked
– Plain Ended, Threaded and Grooved pipes between 1”-8” are UL listed, FM approved. 1/2” and 3/4″ pipes are UL listed only.
– All pipes undergo Non-Destructive testing
– CE Marked
– Plain Ended, Threaded and Grooved pipes between 1”-8” are UL listed, FM approved. 1/2” and 3/4″ pipes are UL listed only.
TECHNICAL SPECIFICATIONS
– High quality and durability
- – Grooved or suitable for frooving
- – FM aprroved
- – UL/C(UL)US listed
- – Schedule 40 and Schedule 10
- – ASTM A795 and ASTM A53 production standarts
- – Standart length 21ft+optional lengths available
- – Galvanized or water based primer painted (black or red)
- – Weldable
- – Hydrostatic tested
- – Corrosion resistance ratio: 1.0
Being one of the largest manufacturers of steel pipes in Turkey, Erbosan continues to increase its production range for clients around the world by adding industrial and residental fire protection sprinkler system pipes to the product portfolio.
Erbosan was approved by Factory Mutual and Underwriters Laboratories for ASTM A795 / ASTM A53 sprinkler pipes.
Erbosan continues and be your strong reliable business partner for your projects.
